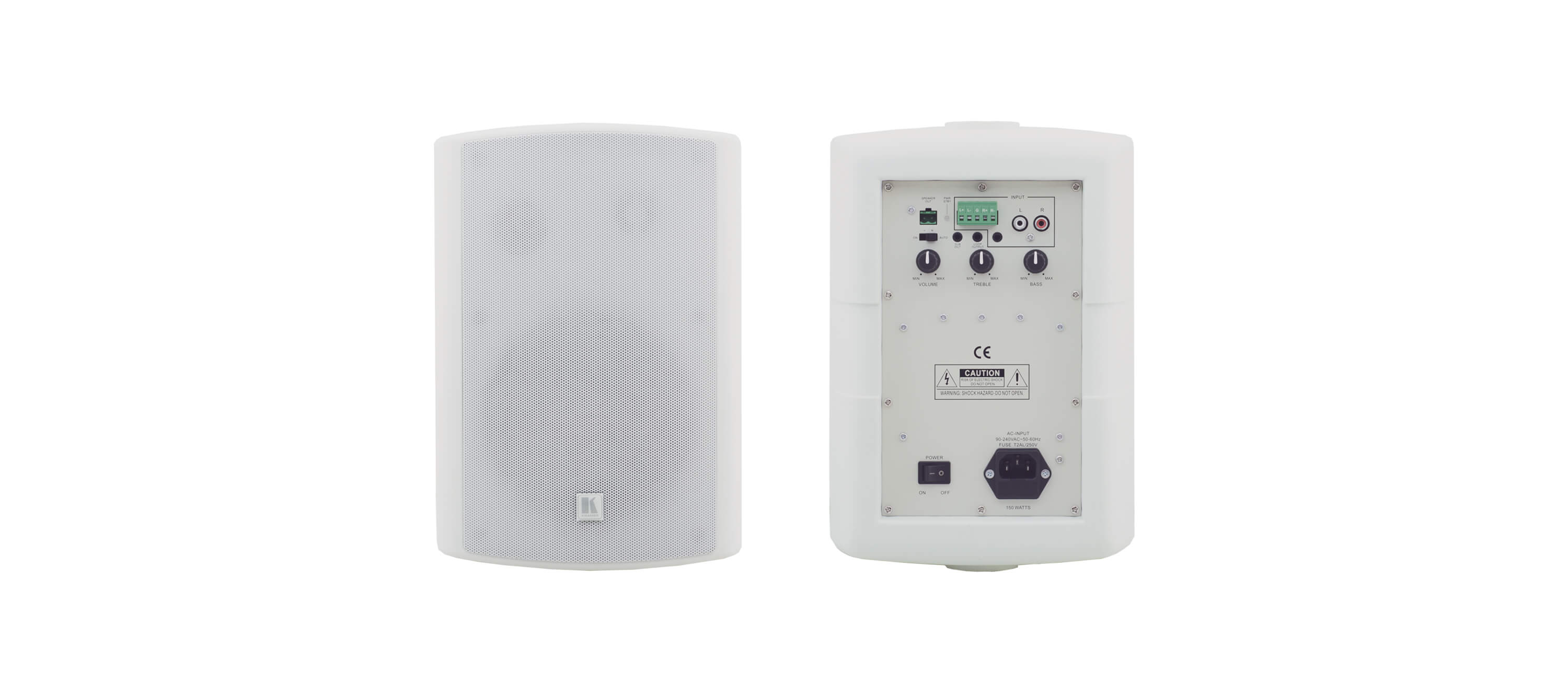

The Tavor 6˙O is a pair of 6.5˙inch powered two˙way speakers designed for indoor wall mounting. The active speaker accepts a line˙level stereo input and amplifies it using a built˙in amplifier and outputs a speaker signal to the passive speaker.
DESCRIPTION 2-way powered speaker

BUILT-IN POWER AMPLIFIER 2 X 50W RMS, 2 X 140W continuous program

FREQUENCY RESPONSE 45Hz to 20kHz @-10dB, 50Hz to 20kHz @±3dB

WOOFER 6.5 - polypropylene cone with rubber edge woofer

TWEETER 1 - silk dome tweeter

SENSITIVITY 85dB SPL, 1W@1m

MAX SPL Continuous: 100dB, peak:108dB

POWER SOURCE 90-240V AC 50/60Hz

IMPEDANCE 4ž

CROSSOVER FREQUENCY 8kHz

DIRECTIVITY FACTOR (Q) 7.5 averaged 1kHz to 10kHz

DIRECTIVITY INDEX (DI) 8.7dB averaged 1kHz to 10kHz

INPUT CONNECTORS Line level unbalanced stereo audio on a 3.5mm mini jack, line level balanced stereo audio on a terminal block connector, line level unbalanced stereo audio on left and right RCA connectors

OUTPUT CONNECTORS Speaker (to connect to the external passive speaker), 3.5mm mini jack line out for optional sub-woofer, 3.5mm mini jack loop output

DISPERSION COVERAGE Vertical: 54 degrees @2000Hz, horizontal:65deg @2000Hz

DAMPING FACTOR 19 @4ž/1000Hz

S/N RATIO 80-90dB

THD °0.15%

CONTROLS Volume, bass and treble

INPUT POWER ON or AUTO

STANDBY MODE POWER CONSUMPTION 0.5W

INPUT LEVEL FOR SYSTEM œWAKE-UP - FROM STANDBY MODE 12mV

MATERIALS Aluminum grill, steel brackets, ABS cabinet

WEIGHT PER SINGLE SPEAKER Active speaker: 3.6kg (7.93lbs) approx

PASSIVE SPEAKER 2.7kg (5.93lbs) approx 3.2kg (7.05lbs) approx

WEIGHT WITH MOUNTING KIT Active speaker: 4.2kg (9.25lbs) approx

SHIPPING WEIGHT (FOR PAIR) 9.25kg (20.39lbs) approx

DIMENSIONS WITH MOUNTING BRACKETS 21cm x 25cm x 32cm (8.3 - x9.8 - x12.6 - ) W, D, H

INSTALLATION CLEARANCE 25cm (9.8 - ) - front panel to wall (with mounting bracket) 6.3cm (2.5 - ) - back panel to wall (with mounting bracket)

OPERATING TEMPERATURE -15° to +70°C (5° to 158°F)

STORAGE TEMPERAURE -30° to +55°C (-22° to 131°F)

HUMIDITY 25% to 90%, RHL non-condensing

ACCESSORIES 1 pair of U-shaped rotating mounting brackets with 4 mounting knobs, 4m (13.12ft) power cord, 4m (13.12ft) loudspeaker cable, 2m (6.6ft) 3.5mm to 2 RCA cable

COLORS Available in black and white
BC-2S Speaker Bulk Cable
Spec Sheet

Audio Products

Price

Collections

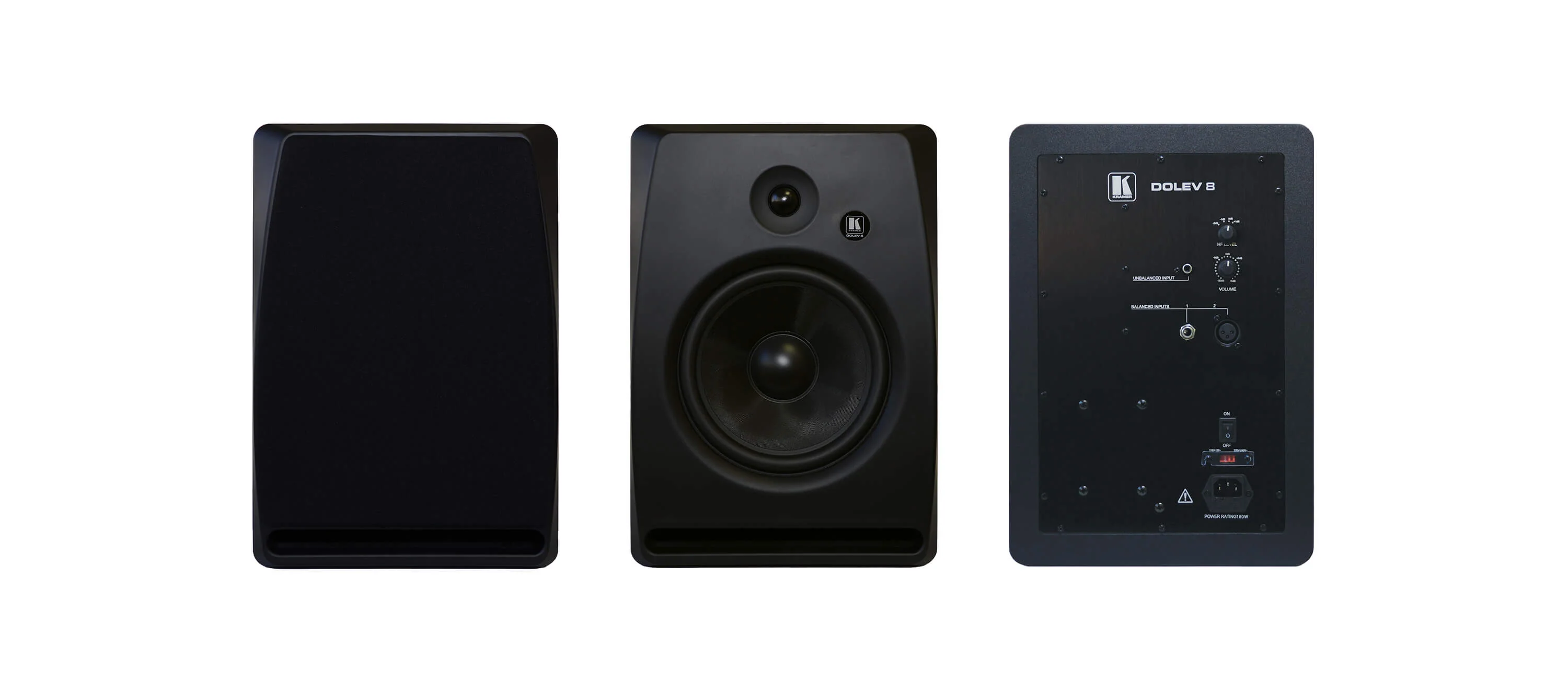

8-Inch, Two-Way Bi-Amplified Studio Grade Speaker

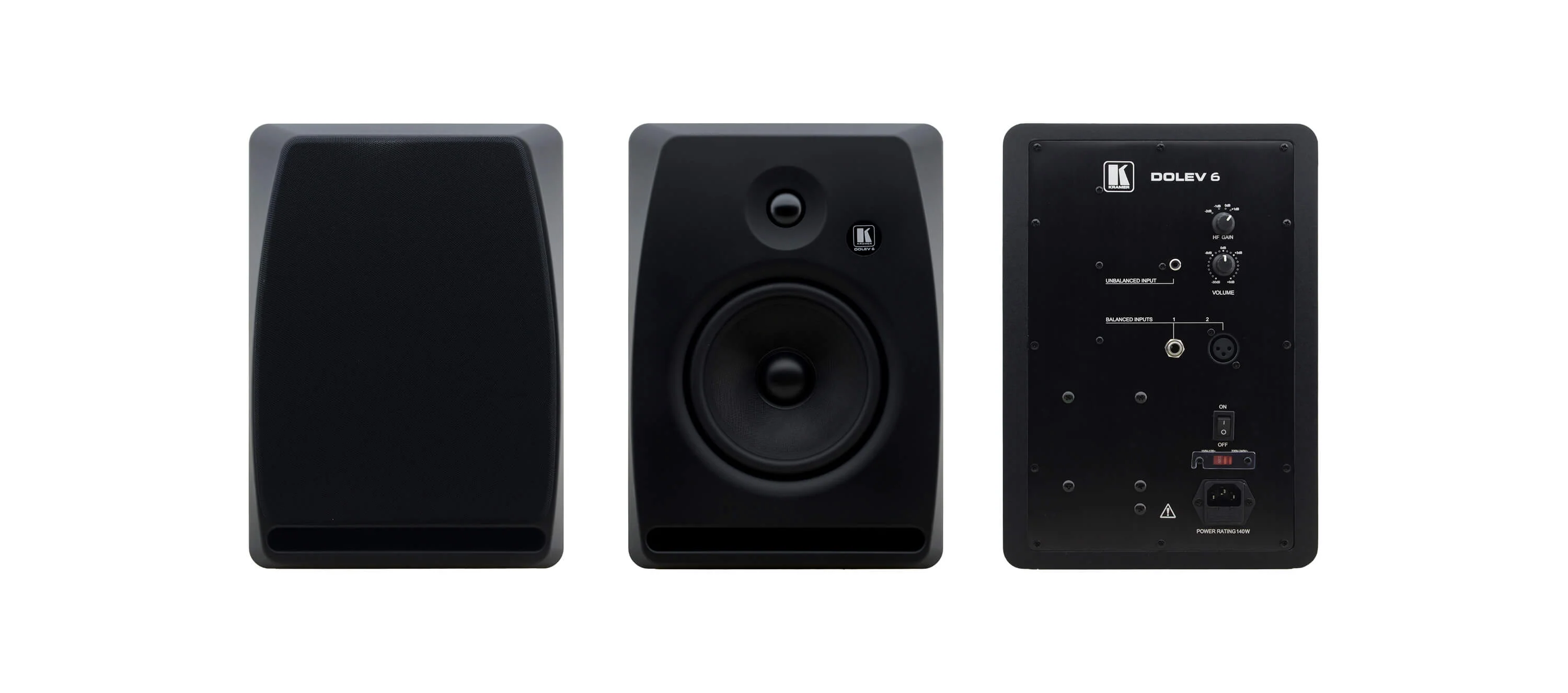

6-Inch, Two-Way Bi-Amplified Studio Grade Speaker
