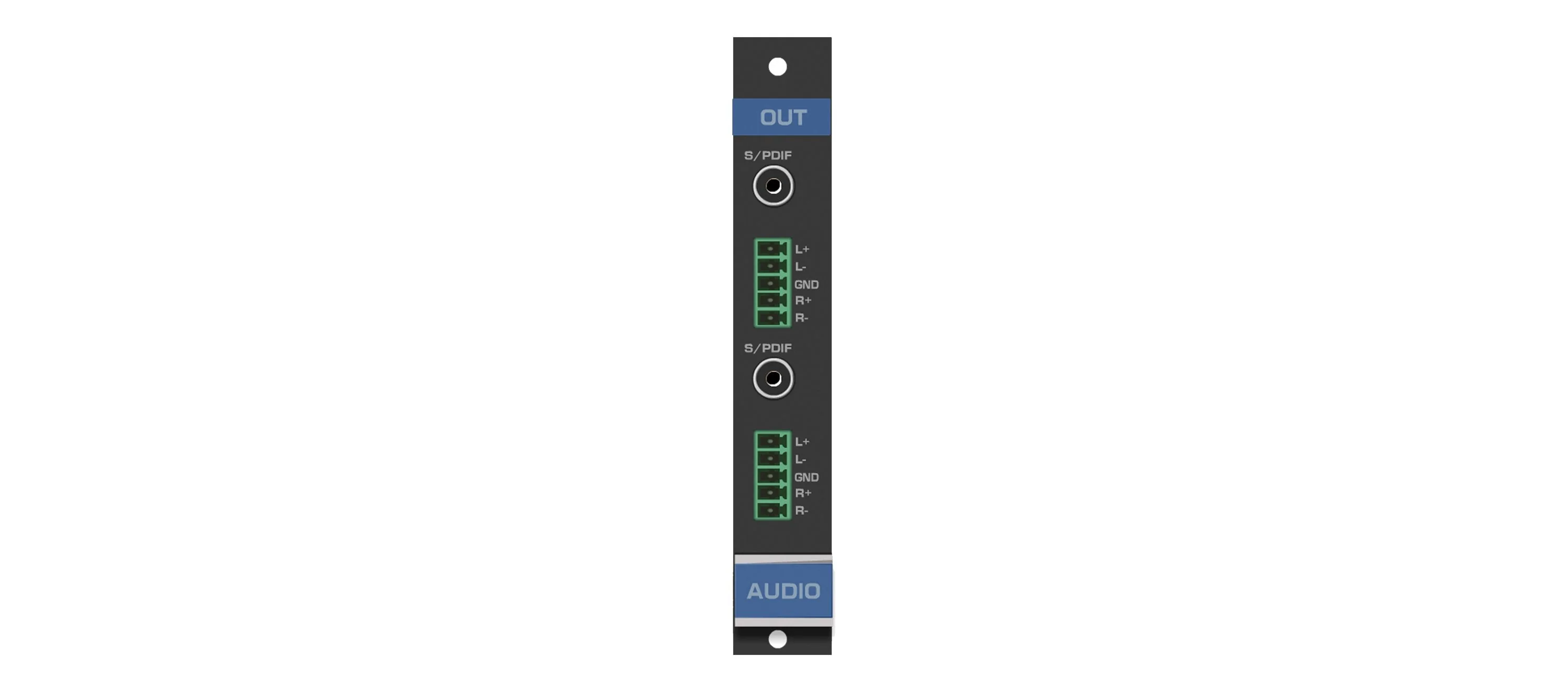

AAD-OUT2-F16 is a two-channel analog and digital output card for the VS-1616 Series Modular Multi-Format Digital Matrix Switchers. The AAD-OUT2-F16 outputs two analog and digital signals from the chassis.
- PORTS 2 S/PDIF (digital audio) on RCA connectors, 2 balanced audio stereo (analog audio) on 5 pin terminal blocks
- TOTAL BANDWIDTH Analog ( 3db): >100kHz, Digital: 32kHz š - 192kHz sample frequency
- POWER CONSUMPTION 5.8W
- OPERATING TEMPERATURE 0° to +40°C (32° to 104°F)
- STORAGE TEMPERATURE 40° to +70°C ( 40° to 158°F)
- HUMIDITY 10% to 90%, RHL non condensing
- SAFETY REGULATORY COMPLIANCE CE
- ENVIRONMENTAL REGULATORY COMPLIANCE Complies with appropriate requirements of RoHs and WEEE
- PRODUCT DIMENSIONS 19.00cm x 13.00cm x 2.00cm (7.48" x 5.12" x 0.79" ) W, D, H
- PRODUCT WEIGHT 0.2kg (0.4lbs) approx.
- SHIPPING DIMENSIONS 34.50cm x 16.50cm x 5.20cm (13.58" x 6.50" x 2.05" ) W, D, H
- SHIPPING WEIGHT 0.3kg (0.6lbs

Output Card

Price

Collections

2-channel Analog & Digital Audio Output Card
