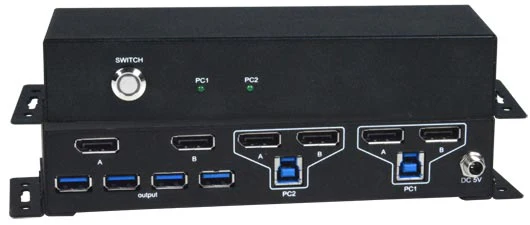

2-Port Dual Monitor 4K DisplayPort USB KVM Switch with Built-In USB 3.2 Hub

Product Datasheet

The UNIMUX Dual Monitor 4K DisplayPort USB KVM Switch with Built-In USB 3.2 Hub allows a user to control two dual-head Ultra-HD 4Kx2K 60Hz 4:4:4 USB computers with one USB keyboard, USB mouse and two 4K DisplayPort monitors.

• Supports Ultra-HD 4Kx2K resolutions to 3840x2160 @60Hz YCbCr 4:4:4, and HDTV resolutions to 1080p @144Hz.
• DisplayPort features supported: DisplayPort 1.2 Dolby True HD, DTS HD Master, and stereo audio. YCbCr 4:4:4, YCbCr 4:2:2, and RGB.
• Up to 12-bit Color
• Bandwidth up to 21.6 Gbps
• HDCP compliant.
• Compatible with dual-head USB computers (PC and MAC).
• Control the switch through the front panel button or keyboard commands.
• Keyboard commands available on Windows computers only.
• Four transparent USB 3.2 ports for connecting USB devices such as keyboards, mice, printers, game controllers, USB flash drives, touch screen monitors, whiteboards, etc.
• Supports SuperSpeed (5 Gbps), high-speed (480 Mbps), full-speed (12 Mbps), or low-speed (1.5 Mbps) USB devices.
• Backwards compatible with USB 2.0/1.1.
• EDID pass-through supported.
• Quick and easy plug-and-play installation no drivers required.
• Integrated mounting brackets for easy surface/wall mounting.

Note: When switching between computers, the screen layout will not be as you left it all open windows will be pushed to the top left corner of the main display.
