DisplayPort Cable, Panel Mount Female to Right Angle Male, 8K Resolution, 1 Meter

Product Datasheet

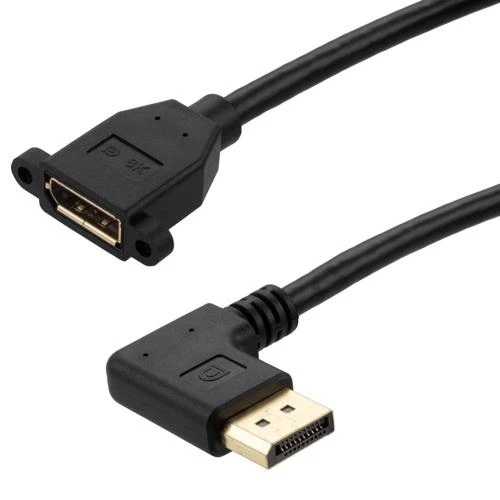

The DP8RA-PMFM-1M DisplayPort cable from L-com provides a versatile and high-performance digital connection, enabling high-resolution video, audio, and data transmission between a source device and a display. This 2 hole flange mount DisplayPort female to right angle DisplayPort male cable is available in a length of 1 meter. The 90-degree connector design enables a more convenient and space-saving connection, particularly in tight spaces or behind desks, where traditional straight connectors may be challenging to use.

Our premium-grade DisplayPort 1.4 cable assembly supports better video resolutions of up to 8K at 60 Hz and 4K at 144 Hz. L-com’s high-definition 8K resolution DisplayPort cable provides enhanced picture quality, making the entire screen appear more vivid and realistic, ultimately delivering greater visual delight. This DP8RA-PMFM-1M black data cable comes with a PVC jacket of 0.236-inch diameter.

This DisplayPort 2 hole flange mount female to right angle male cable has a 30 AWG stranded conductor construction. The latching DisplayPort connector on this cable reduces the risk of accidental disconnection, and the panel mount connector allows the user to install it into a bulkhead. This angled DisplayPort 1.4 cable assembly is suitable for digital signage, high-end computer graphics, HD PC displays, and home and professional use.

Features

• High Definition 8K resolution DisplayPort cable for the clearest picture available
• Right angle orientation allows the user to reach ports in tight spaces
• Available in Right, Left, Up, or Down orientation
• Latching DisplayPort connector reduces the risk of accidental disconnection
• Panel Mount allows the user to install into a bulkhead

Application

• Digital Signage
• High end computer graphics
• HD PC Display
• Home and Professional Use
