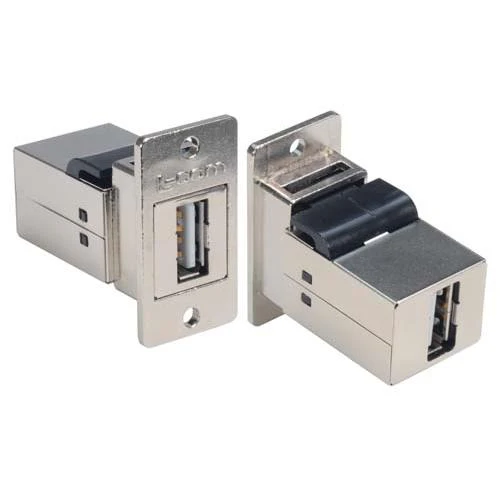

Flanged Panel Mounted USB 2.0 Coupler - Shielded, Type A/A Connectors

Product Datasheet

These unique products combine L-com's fully shielded keystone couplers with a solid die-cast metal mounting frame allowing for mounting in virtually any panel thickness. Three coupler options are available - A to A, A to B, and B to A. 4-40 machine screws are provided.

Features

• 30 micro inch gold plated contacts provide reliable connections with repeated mating cycles
• Allows USB cables to be passed through panels or enclosures
• Flange kit includes a keystone style snap-in coupler, mounting frame and 4-40 machine screws
• Fully stamped shielding offers isolation from EMI/RFI
• Screw mount for secure installations

Application

• PC Peripheral Interconnects
• Data Acquisition
• Test and Measurement
