Galil 6-C 6.5Inch, 2Way ClosedBack Ceiling Speakers
- Overview
- Specifications
- Cables
- Resources
-

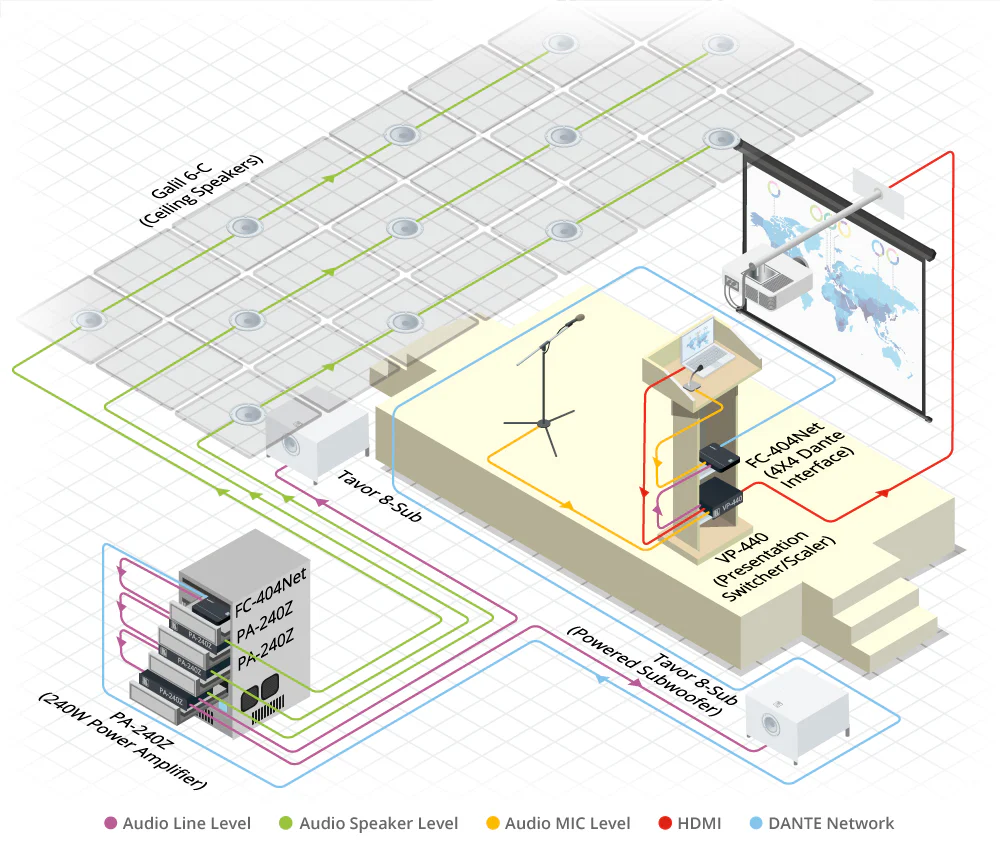

The Galil 6C (formerly SPKC612) Closedback Ceiling Speaker features a multitap power transformer for selecting 8š¾ (bypassing the transformer) or 70V/100V power settings that are suitable for an array installation.
- Type - 2way coaxial speaker.
- Woofer - 6.5 - polypropylene cone.
- Tweeter - 0.5 - Mylar dome.
- Impedance - 8½©.
- Power Handling - 30W RMS, 80W continuous program.
- Transformer Taps - 70V: 30W/15W/7.5W/3.7W/Off (LoZ); 100V: 30W/15W/7.5W/Off (LoZ). UL 1480 & 2043 Listed
- Package Includes - 2 speakers (1 pair), ceiling mounting kit, template and user manual.
-
DESCRIPTION 2way closedback ceiling speakers
FREQUENCY RESPONSE 80Hz to 20kHz @ - 10dB, 95Hz to 20kHz @ ±3dB
WOOFER 6.5 - (165mm) polypropylene with rubber surround
TWEETER 0.5 - (13mm) Mylar dome
IMPEDANCE 8š¾ (transformer tap in off position)
TRANSFORMER TAPS 70V - 3.7W/7.5W/15W/30W/Off (LoZ), 100V - 7.5W/15W/30W/Off (LoZ)
SENSITIVITY 87dB SPL, 1W @1m
MAX SPL Continuous: 100.7dB, peak: 103.7dB
POWER HANDLING 30W RMS, 80W continuous program
CROSSOVER FREQUENCY 9.2kHz
COVERAGE ANGLE 101°
DIRECTIVITY FACTOR (Q) 7.5 averaged 1kHz to 10kHz
DIRECTIVITY INDEX (DI) 8.6dB averaged 1kHz to 10kHz
INPUT CONNECTOR Terminal block
MATERIALS ABS bezel, aluminum grill, metal back can
OPERATING TEMPERATURE 0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE 40° to +70°C (40° to 158°F) 10% to 90%, RHL noncondensing
WEIGHT PER SINGLE SPEAKER 2.85kg (6.28lbs) approx
SHIPPING WEIGHT (FOR PAIR) 8kg (17.64lbs) approx
INSTALLATION DIMESIONS Mounting depth: 19.6cm (7.72") Cutout diameter: 22.4cm (8.82")
ACCESSORIES Installation bracket, safety cord attached to grill, ceiling mounting kit
COLORS Available in white
-
BC-2S Speaker Bulk Cable
-
Spec Sheet
