1920 MHz to 2170 MHz Lightweight Die-cast Grid Antenna 22 dBi Type N Female Connector

Product Datasheet

Please contact us for Pricing and Shipping

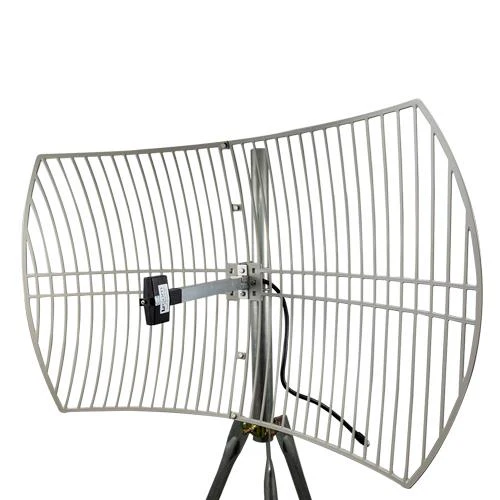

The L-com HG1922EG-1-NF is a high-performance light weight reflector grid antenna specifically designed for long-range directional point to point systems, point to multipoint and wireless bridges. L-com's HG1922EG-1-NF has 20 to 22 dBi gain. The open grid design provides minimal wind loading and is UV resistant powder coated for durability. The HG1922EG-1-NF operates from 1920 to 2170 MHz which is ideal for cellular backhaul.

The HG1922EG-1-NF from L-com has 13° Vertical and 8° Horizontal Beamwidth patterns with vertical or horizontal polarization and features Type N female connectors. The 1920-2170 MHz HG1922EG-1-NF is shipped as a 2-piece reflector grid which is simple to assemble

The Type N female connectorized HG1922EG-1-NF antenna from L-com has mounting bracket and hardware included which makes this antenna very easy to install. This high-performance light weight reflector grid antenna just like our wide selection of superior quality RF parts

Features

• All weather operation
• Easy to assemble
• UV stable powder coat finish
• Die-cast aluminum construction

Application

• 1920 to 2170 MHz GSM Band
• Point to Point (PtP) Systems & Point to Multi-point (PtMP) Systems
• Cellular Systems & Long-range Directional Applications
• Wireless Bridges, Backhaul Applications & Wireless Video Systems
