Radome Enclosed Omni Antenna 2.4 GHz 3 dBi Black Type-N Female Bulkhead

Product Datasheet

The HG2403UR-NFFB is a very compact 2.4GHz Omni WiFi antennas provide broad coverage and 3 dBi gain. They are ideally suited for IEEE 802.11b and 802.11g wireless LANs, Bluetooth® and other applications where wide coverage is desired.

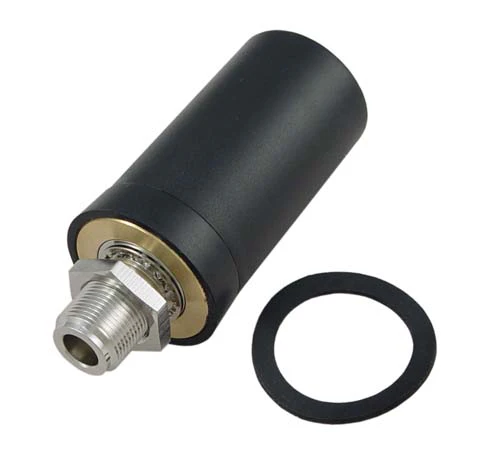

This RF antenna is only 2.7" long and features a Black aesthetic ABS plastic radome. White radomes are also available upon request. Designed for bulkhead mounting, the HG2403UR-NFBB features an integral Type-N Female bulkhead connector. Because of its near-invisible design this antenna is ideal for use on vehicles where vandal-resistance and aesthetics are important.

Features:

• Radome Enclosed, ideal for outdoor use
• Compact size
• Integran Type-N Female bulkhead mount connector

Applications:

• 2.4 GHz ISM Band
• IEEE 802.11b and 802.11g Wireless LAN
• WiFi and Bluetooth® applications
• Wireless Video Systems
• Multipoint and Mobile Applications
