Coaxial Adapter, SMA Female / UMCX Plug

Product Datasheet

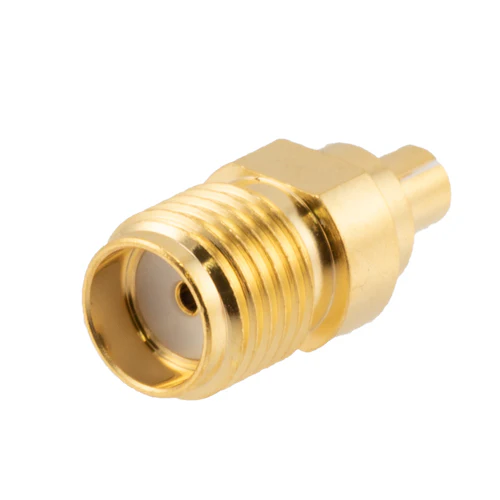

These L-com RF Coaxial Adapters are used to interface between SMA to UMCX with coaxial connections. The LCAD30003 is a straight adapter with a female to plug configuration. This Coaxial Adapter, SMA Female / UMCX Plug is made from tri-metal and has a gold finish. An SMA interface design is defined by Mil-STD-348A and has many popular features including a threaded coupling method with a robust center contact and outer conductor interface. SMA's generally work up to 18GHz and are a cost effective way of insuring a highly dependable RF Coaxial connection. A UMCX adapter's interface is compatible with the popular u.fl design from Hirose. The UMCX has a simple snap on connection and its small size is popular in applications that require a small foot print. Often used on printed circuit boards and with micro coax the UMCX (u.fl) interface is a widely used miniature coaxial connector series.

Features

• Provides Between Series SMA to UMCX Connections
• Operates to 6 GHz
• Max VSWR of 1.3:1
• Gold Plated Center Contacts

Application

• System Interconnect
• PCB Board to Cable Connections
• Test and Measurement Applications
