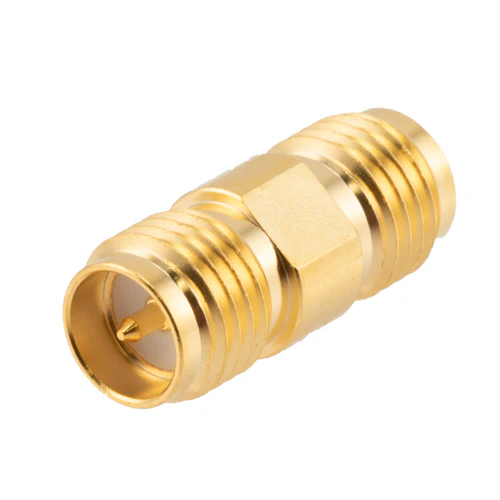

Coaxial Adapter, RP-SMA Female / RP-SMA Female
Product Datasheet
These L-com RF Coaxial Adapters are used to interface between SMA to SMA with coaxial connections. The LCAD30007 is a straight adapter with a female to female configuration. This Coaxial Adapter, RP-SMA Female / RP-SMA Female is made from brass and has a gold finish. An SMA interface design is defined by Mil-STD-348A and has many popular features including a threaded coupling method with a robust center contact and outer conductor interface. SMA's generally work up to 18GHz and are a cost effective way of insuring a highly dependable RF Coaxial connection.
Features
- Provides In-Series Reverse Polarity SMA to Reverse Polarity SMA Connections
- Operates to 4 GHz
- Max VSWR of 1.35:1
- Gold Plated Center Contacts
Application
- Part 15 Reverse Polarity System Interconnect
- General Purpose Lab
- Test and Measurement Applications
Original: $18.05
-65%$18.05
$6.32Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Product Datasheet
These L-com RF Coaxial Adapters are used to interface between SMA to SMA with coaxial connections. The LCAD30007 is a straight adapter with a female to female configuration. This Coaxial Adapter, RP-SMA Female / RP-SMA Female is made from brass and has a gold finish. An SMA interface design is defined by Mil-STD-348A and has many popular features including a threaded coupling method with a robust center contact and outer conductor interface. SMA's generally work up to 18GHz and are a cost effective way of insuring a highly dependable RF Coaxial connection.
Features
- Provides In-Series Reverse Polarity SMA to Reverse Polarity SMA Connections
- Operates to 4 GHz
- Max VSWR of 1.35:1
- Gold Plated Center Contacts
Application
- Part 15 Reverse Polarity System Interconnect
- General Purpose Lab
- Test and Measurement Applications
