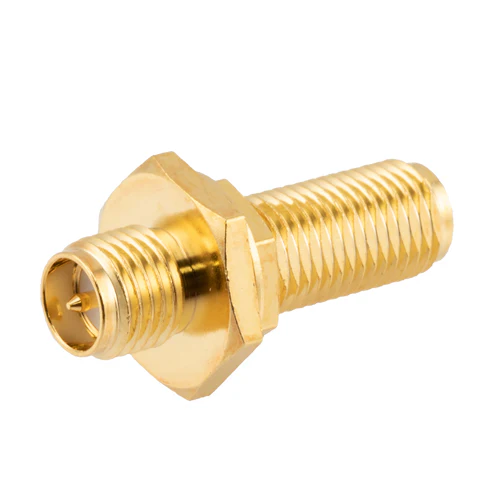

Coaxial Adapter, RP-SMA Female / Female Bulkhead

Product Datasheet

These L-com RF Coaxial Adapters are used to interface between SMA to SMA with coaxial connections. The LCAD30035 is a straightbulkhead adapter with a female to female configuration. This Coaxial Adapter, RP-SMA Female / Female Bulkhead is made from brass and has a gold finish. An SMA interface design is defined by Mil-STD-348A and has many popular features including a threaded coupling method with a robust center contact and outer conductor interface. SMA's generally work up to 18GHz and are a cost effective way of insuring a highly dependable RF Coaxial connection.

Features

• Provides In-Series Reverse Polarity SMA to Reverse Polarity SMA Connections
• Operates to 18 GHz
• Max VSWR of 1.25:1
• Gold Plated Center Contacts
• Bulkhead Mount

Application

• Part 15 Reverse Polarity System Interconnect
• General Purpose Lab
• Test and Measurement Applications
