DC-3GHz 2W RF fixed attenuator 8dB, SMA(M,F) Hex

Product image 1

DC-3GHz 2W RF fixed attenuator 8dB, SMA(M,F) Hex

Product Datasheet

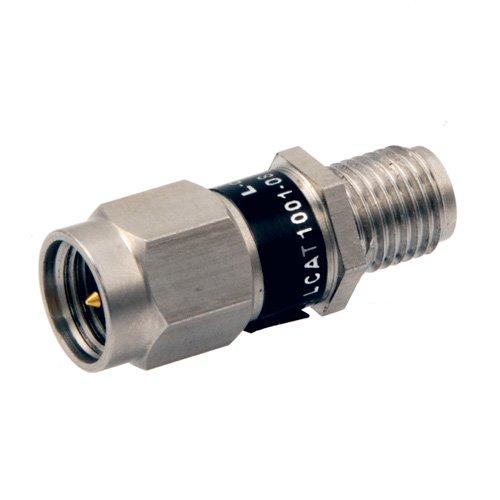

LCAT1001-08 is a 8dB RF fixed attenuator from L-com. With hex nut on the body, the attenuator has coaxial in-line design with SMA male connector on one end and SMA female connector on the other.

Features

  • Attenuation accuracy 8 0.5dB
  • Input Power 2W max
  • Frequency range from DC to 3GHz
  • Operating temp range from -55 to 125C
  • VSWR <1.15

Application

  • Instrumentation
  • Precision measurements
  • Production systems
  • Prototyping and characterization
  • RF test systems
$5.89

Original: $16.82

-65%
DC-3GHz 2W RF fixed attenuator 8dB, SMA(M,F) Hex—

$16.82

$5.89

Product Information

Shipping & Returns

Description

Product Datasheet

LCAT1001-08 is a 8dB RF fixed attenuator from L-com. With hex nut on the body, the attenuator has coaxial in-line design with SMA male connector on one end and SMA female connector on the other.

Features

  • Attenuation accuracy 8 0.5dB
  • Input Power 2W max
  • Frequency range from DC to 3GHz
  • Operating temp range from -55 to 125C
  • VSWR <1.15

Application

  • Instrumentation
  • Precision measurements
  • Production systems
  • Prototyping and characterization
  • RF test systems
