DC-3GHz 2W RF fixed attenuator 20dB, SMA(M,F) Hex

Product image 1

DC-3GHz 2W RF fixed attenuator 20dB, SMA(M,F) Hex

Product Datasheet

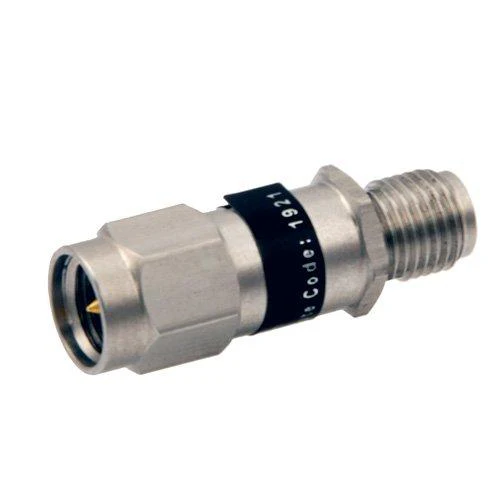

LCAT1001-20 is a 20dB RF fixed attenuator from L-com. With hex nut on the body, the attenuator has coaxial in-line design with SMA male connector on one end and SMA female connector on the other.

Features

  • Frequency range from DC to 3GHz
  • Input Power 2W max
  • VSWR <1.15
  • Attenuation accuracy 20 0.5dB
  • Operating temp range from -55 to 125C

Application

  • Instrumentation
  • Precision measurements
  • Prototyping and characterization
  • Production systems
  • RF test systems
$21.27

Original: $60.77

-65%
DC-3GHz 2W RF fixed attenuator 20dB, SMA(M,F) Hex—

$60.77

$21.27

Product Information

Shipping & Returns

Description

Product Datasheet

LCAT1001-20 is a 20dB RF fixed attenuator from L-com. With hex nut on the body, the attenuator has coaxial in-line design with SMA male connector on one end and SMA female connector on the other.

Features

  • Frequency range from DC to 3GHz
  • Input Power 2W max
  • VSWR <1.15
  • Attenuation accuracy 20 0.5dB
  • Operating temp range from -55 to 125C

Application

  • Instrumentation
  • Precision measurements
  • Prototyping and characterization
  • Production systems
  • RF test systems
