DC-3GHz 2W RF fixed attenuator 3dB, SMA(M,F)

Product image 1

DC-3GHz 2W RF fixed attenuator 3dB, SMA(M,F)

Product Datasheet

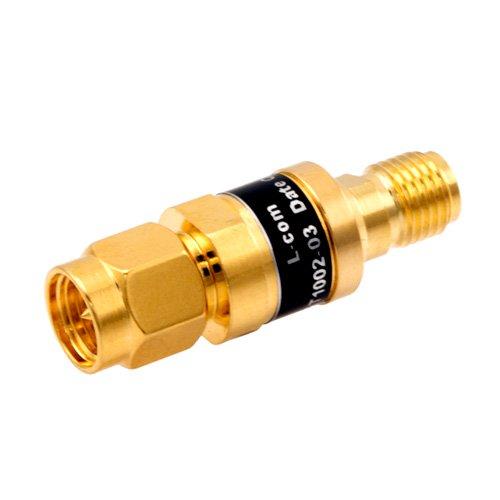

LCAT1002-03 is a 3dB RF fixed attenuator from L-com. With gold plated brass body, the attenuator has coaxial in-line design with SMA male connector on one end and SMA female connector on the other.

Features

  • Operating temp range from -55 to 125C
  • VSWR <1.2
  • Attenuation accuracy 3 0.5dB
  • Frequency range from DC to 3GHz
  • Input Power 2W max

Application

  • Production systems
  • Prototyping and characterization
  • RF test systems
  • Instrumentation
  • Precision measurements
$18.10

Original: $51.72

-65%
DC-3GHz 2W RF fixed attenuator 3dB, SMA(M,F)—

$51.72

$18.10

Product Information

Shipping & Returns

Description

Product Datasheet

LCAT1002-03 is a 3dB RF fixed attenuator from L-com. With gold plated brass body, the attenuator has coaxial in-line design with SMA male connector on one end and SMA female connector on the other.

Features

  • Operating temp range from -55 to 125C
  • VSWR <1.2
  • Attenuation accuracy 3 0.5dB
  • Frequency range from DC to 3GHz
  • Input Power 2W max

Application

  • Production systems
  • Prototyping and characterization
  • RF test systems
  • Instrumentation
  • Precision measurements
