DC-3GHz 2W RF fixed attenuator 6dB, SMA(M,F)

Product image 1

DC-3GHz 2W RF fixed attenuator 6dB, SMA(M,F)

Product Datasheet

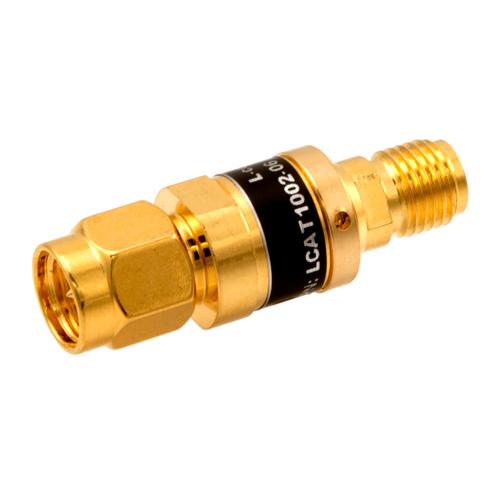

LCAT1002-06 is a 6dB RF fixed attenuator from L-com. With gold plated brass body, the attenuator has coaxial in-line design with SMA male connector on one end and SMA female connector on the other.

Features

  • Input Power 2W max
  • VSWR <1.2
  • Attenuation accuracy 6 0.5dB
  • Frequency range from DC to 3GHz
  • Operating temp range from -55 to 125C

Application

  • Instrumentation
  • Precision measurements
  • Production systems
  • Prototyping and characterization
  • RF test systems
$6.32

Original: $18.05

-65%
DC-3GHz 2W RF fixed attenuator 6dB, SMA(M,F)—

$18.05

$6.32

Product Information

Shipping & Returns

Description

Product Datasheet

LCAT1002-06 is a 6dB RF fixed attenuator from L-com. With gold plated brass body, the attenuator has coaxial in-line design with SMA male connector on one end and SMA female connector on the other.

Features

  • Input Power 2W max
  • VSWR <1.2
  • Attenuation accuracy 6 0.5dB
  • Frequency range from DC to 3GHz
  • Operating temp range from -55 to 125C

Application

  • Instrumentation
  • Precision measurements
  • Production systems
  • Prototyping and characterization
  • RF test systems
