DC-3GHz 2W RF fixed attenuator 5dB, N-type(M,F)

Product image 1

DC-3GHz 2W RF fixed attenuator 5dB, N-type(M,F)

Product Datasheet

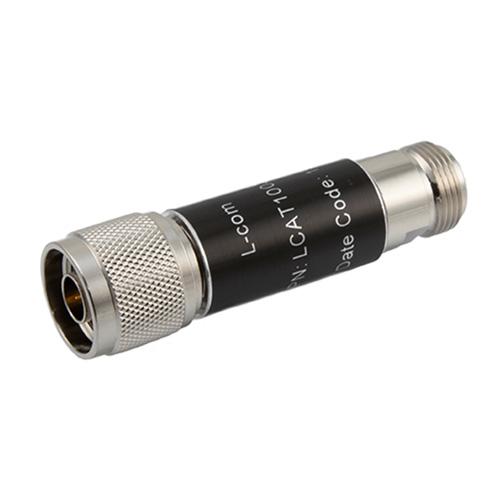

LCAT1003-05 is a 5dB RF fixed attenuator from L-com with excellent electrical performance. The attenuator has operating frequency range from DC to 3GHz and coaxial in-line design with N-type male connector on one end and N-type female connector on the other.

Features

  • Attenuation accuracy 5 0.4dB
  • Frequency range from DC to 3GHz
  • Input Power 2W max
  • Operating temp range from -55 to 125C
  • VSWR <1.20

Application

  • Instrumentation
  • Precision measurements
  • Production systems
  • Prototyping and characterization
  • RF test systems
$70.77
DC-3GHz 2W RF fixed attenuator 5dB, N-type(M,F)—
$70.77

Product Information

Shipping & Returns

Description

Product Datasheet

LCAT1003-05 is a 5dB RF fixed attenuator from L-com with excellent electrical performance. The attenuator has operating frequency range from DC to 3GHz and coaxial in-line design with N-type male connector on one end and N-type female connector on the other.

Features

  • Attenuation accuracy 5 0.4dB
  • Frequency range from DC to 3GHz
  • Input Power 2W max
  • Operating temp range from -55 to 125C
  • VSWR <1.20

Application

  • Instrumentation
  • Precision measurements
  • Production systems
  • Prototyping and characterization
  • RF test systems
