DC-3GHz 2W RF fixed attenuator 20dB, N-type(M,F)

Product image 1

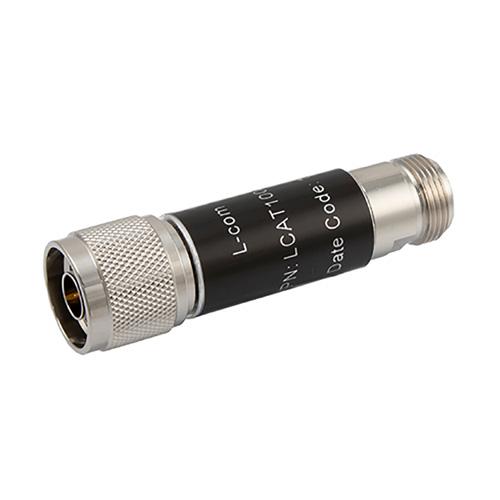

DC-3GHz 2W RF fixed attenuator 20dB, N-type(M,F)

Product Datasheet

LCAT1003-20 is a 20dB RF fixed attenuator from L-com with excellent electrical performance. The attenuator has operating frequency range from DC to 3GHz and coaxial in-line design with N-type male connector on one end and N-type female connector on the other.

Features

  • Attenuation accuracy 20 0.5dB
  • VSWR <1.20
  • Frequency range from DC to 3GHz
  • Input Power 2W max
  • Operating temp range from -55 to 125C

Application

  • Instrumentation
  • Precision measurements
  • RF test systems
  • Production systems
  • Prototyping and characterization
$76.89
DC-3GHz 2W RF fixed attenuator 20dB, N-type(M,F)—
$76.89

Product Information

Shipping & Returns

Description

Product Datasheet

LCAT1003-20 is a 20dB RF fixed attenuator from L-com with excellent electrical performance. The attenuator has operating frequency range from DC to 3GHz and coaxial in-line design with N-type male connector on one end and N-type female connector on the other.

Features

  • Attenuation accuracy 20 0.5dB
  • VSWR <1.20
  • Frequency range from DC to 3GHz
  • Input Power 2W max
  • Operating temp range from -55 to 125C

Application

  • Instrumentation
  • Precision measurements
  • RF test systems
  • Production systems
  • Prototyping and characterization
