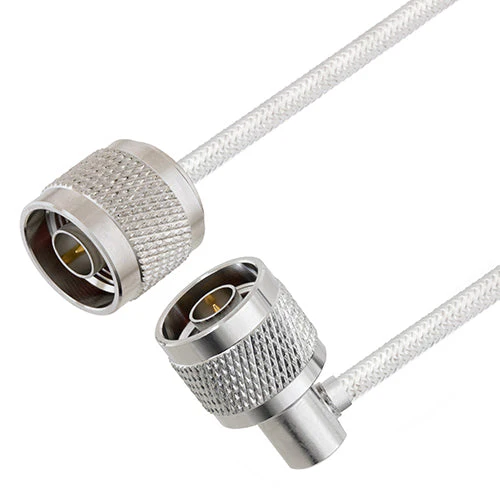

N Male to N Male Right Angle Cable Assembly using LC141TB Coax, 1.5 FT

Product Datasheet

L-com N male to N male right angle cable assembly using LC141TB coax, 1.5 FT. This high quality N cable is part of a large selection of coaxial cable assemblies for RF / microwave. LCCA30078-FT1.5 N cables from L-com are a great choice for solutions requiring high quality. These high-quality RF coax cable assemblies can be used for telecom, military / defense, laboratory test & measurement, industrial / commercial and many other applications.

These RF coaxial cable assemblies are built with N connection on one end and right angle N connection on the other. This N to right angle N cable from L-com has a male to male gender combination. Our N male to N male coaxial assembly part number LCCA30078-FT1.5 can also be known as N plug to right angle N plug cable assembly when using alternate gender names.

N plug to N plug cable assembly LCCA30078-FT1.5 is manufactured with a formable coax.

Maximum frequency for these N to N M/M cables is 11 GHz. This product can also be called a right angle N male to N male cable assembly because it can be used in the opposite direction.

Features

• Max Frequency 11 GHz
• Shielding Effectivity > 100dB
• PTFE Dielectric with 69.9% VoP
• Hand Formable
• Tin Filled Copper Braid Outer Conductor

Application

• General Purpose
• Laboratory Use
• System Interconnect
