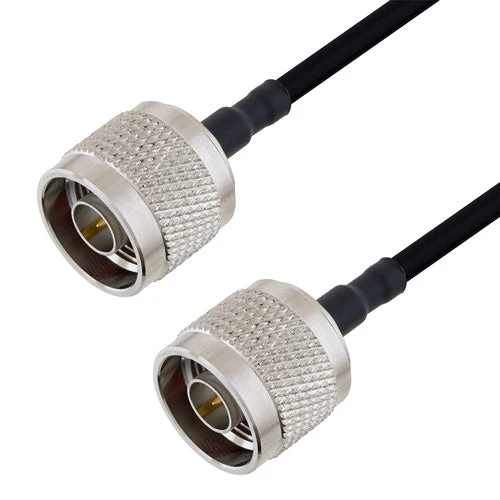

N Male to N Male Cable Assembly using LC141TBJ Coax, 1 FT

Product Datasheet

L-com N male to N male cable assembly using LC141TBJ coax, 1 FT is part of a large selection of coaxial cable assemblies for RF / microwave. LCCA30097-FT1 N cables from L-com are a great choice for solutions requiring high quality. These high-quality RF coax cable assemblies can be used for telecom, military / defense, laboratory test & measurement, industrial / commercial and many other applications.

These RF coaxial cable assemblies are built with N connection on one end and N connection on the other. This N to N cable from L-com has a male to male gender combination. Our N male to N male coaxial assembly part number LCCA30097-FT1 can also be known as N plug to N plug cable assembly when using alternate gender names.

N plug to N plug cable assembly LCCA30097-FT1 is manufactured with a formable coax.

Maximum frequency for these N to N M/M cables is 11 GHz.

Features

• Max Frequency 11 GHz
• Shielding Effectivity > 100dB
• PTFE Dielectric with 70% VoP
• Hand Formable
• Tin Filled Copper Braid Outer Conductor
• FEP Jacket

Application

• General Purpose
• Laboratory Use
• System Interconnect
