Passive CWDM, Single LGX Mux/Demux, 8 Ch. w/ 20nm spacing, start ch 1470nm, LC/UPC w/ PASS&MON (1%)

Product Datasheet

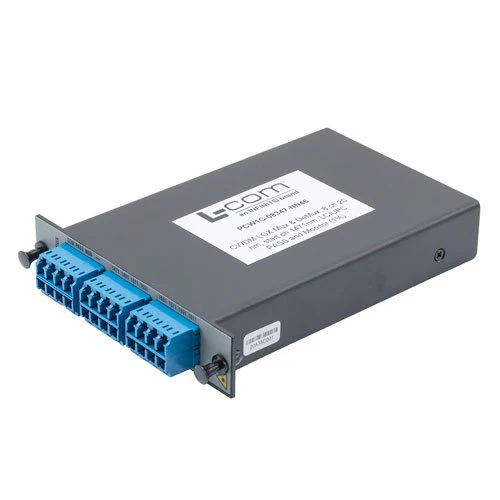

The L-COM PCW1C-08347-NN46 is a CWDM Passive Filter with 8 CWDM Channels. The L-COM PCW1C-08347-NN46 is a single HU LGX cassette filter with Combo Mux & DeMux functionality. The L-COM PCW1C-08347-NN46 has 8 channels: 1471, 1491, 1511, 1531, 1551, 1571, 1591, and 1611nm, starting with 1471nm and with 20nm spacing. The L-COM PCW1C-08347-NN46 has LC/UPC connectors and has Monitor port option on Mux and Demux and a PASS port to carry the unused CWDM channels through. The L-COM PCW1C-08347-NN46 is a dual fiber filter with one sending muxed signal and the other receiving a composite signal for demuxing. L-COM produces the high quality passive filters that your business can rely on.

Features

• Passive
• CWDM
• 20nm spacing
• Standard LGX cassette
• Two Fiber Mux& Demux Combo
• 8 Channels
• Starting with channel 1471nm
• LC/UPC connectors
• 1% Monitor option
• Pass / Express option

Application

• Single Mode Fiber Networking
• Dual Fiber
• side by side mux and demux functions
• Metro transport
• Regional Distribution
• Inside Plant (ISP) Operation
