Passive CWDM, Single LGX Demux, 8 Ch F (skip 1391-1411nm) w/ 20nm spacing, start ch 1270nm, LC/UPC w/ MON (1%)&Pass Single Fiber

Product Datasheet

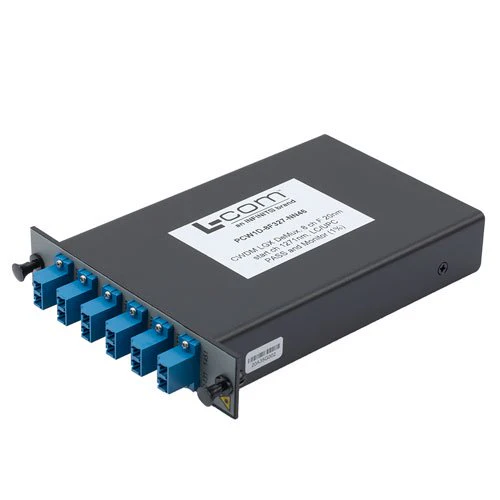

The L-COM PCW1D-8F327-NN46 is a CWDM Passive Filter with 8 CWDM Channels. The L-COM PCW1D-8F327-NN46 is a single HU LGX cassette filter with Demux functionality. The L-COM PCW1D-8F327-NN46 has 8 channels: 1271, 1291 1311, 1331, 1351, 1371, 1431, and 1451nm (skipping 1391&1411), starting with 1271nm and with 20nm spacing. The L-COM PCW1D-8F327-NN46 has LC/UPC connectors and has Monitor port option and a PASS port to carry the unused CWDM channels through. The L-COM PCW1D-8F327-NN46 is a single fiber filter for demuxing channels received COM signal. L-COM produces the high quality passive filters that your business can rely on.

Features

• Passive
• CWDM
• 20nm spacing
• Standard LGX cassette
• Single Fiber Demux
• 8 Channels (skipping 1391&1411nm)
• Starting with channel 1271nm
• LC/UPC connectors
• 1% Monitor option
• Pass / Express option

Application

• Single Mode Fiber Networking
• Single Fiber
• Demux function
• Metro transport
• Regional Distribution
• Inside Plant (ISP) Operation
