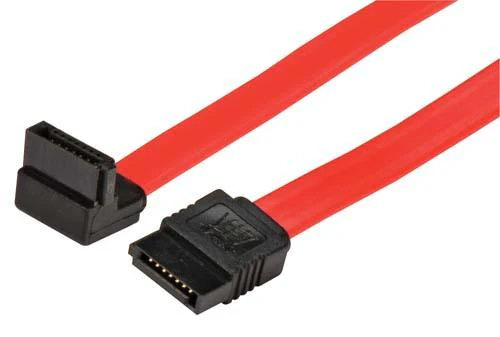

CASATAR-05M SATA Cable Straight/Right Angle 0.5m
Product Datasheet
Serial ATA cables are replacing wide Parallel ATA ribbon cables in many applications. The Serial ATA cable is smaller, more flexible, and therefore easier to route inside a chassis. With the trend toward miniaturization, these characteristics are beneficial in many product designs. The cables feature two shielded 26 AWG pairs in a PVC jacket, gold plated contacts, and one straight/one right angle polarized seven position connector. Custom lengths available with modest minimum requirements.
Meets SATA application requirements
Tight pitch 7 position connectors save space compared to larger parallel ATA connectors
Supports transfer rates of up to 3Gbps depending on the peripherals used
Right angle connector reduces cable strain for applications requiring a 90 degree bend
Available in 0.5 & 1 meter lengths
Serial ATA cables are replacing wide Parallel ATA ribbon cables in many applications. The Serial ATA cable is smaller, more flexible, and therefore easier to route inside a chassis. With the trend toward miniaturization, these characteristics are beneficial in many product designs. The cables feature two shielded 26 AWG pairs in a PVC jacket, gold plated contacts, and one straight/one right angle polarized seven position connector. Custom lengths available with modest minimum requirements.
Meets SATA application requirements
Tight pitch 7 position connectors save space compared to larger parallel ATA connectors
Supports transfer rates of up to 3Gbps depending on the peripherals used
Right angle connector reduces cable strain for applications requiring a 90 degree bend
Available in 0.5 & 1 meter lengths
$14.13
CASATAR-05M SATA Cable Straight/Right Angle 0.5m—
$14.13
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Product Datasheet
Serial ATA cables are replacing wide Parallel ATA ribbon cables in many applications. The Serial ATA cable is smaller, more flexible, and therefore easier to route inside a chassis. With the trend toward miniaturization, these characteristics are beneficial in many product designs. The cables feature two shielded 26 AWG pairs in a PVC jacket, gold plated contacts, and one straight/one right angle polarized seven position connector. Custom lengths available with modest minimum requirements.
Meets SATA application requirements
Tight pitch 7 position connectors save space compared to larger parallel ATA connectors
Supports transfer rates of up to 3Gbps depending on the peripherals used
Right angle connector reduces cable strain for applications requiring a 90 degree bend
Available in 0.5 & 1 meter lengths
Serial ATA cables are replacing wide Parallel ATA ribbon cables in many applications. The Serial ATA cable is smaller, more flexible, and therefore easier to route inside a chassis. With the trend toward miniaturization, these characteristics are beneficial in many product designs. The cables feature two shielded 26 AWG pairs in a PVC jacket, gold plated contacts, and one straight/one right angle polarized seven position connector. Custom lengths available with modest minimum requirements.
Meets SATA application requirements
Tight pitch 7 position connectors save space compared to larger parallel ATA connectors
Supports transfer rates of up to 3Gbps depending on the peripherals used
Right angle connector reduces cable strain for applications requiring a 90 degree bend
Available in 0.5 & 1 meter lengths
