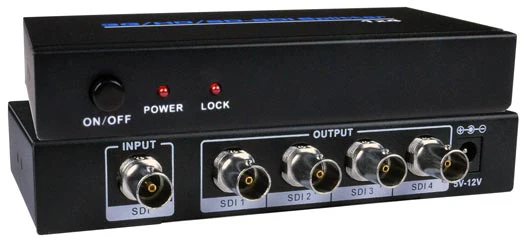

4-Port 3G-SDI Splitter

• Simultaneously broadcasts 3G-SDI/HD-SDI/SD-SDI signal from one source to four displays using 75 Ohm RG6 BNC cables.
• Automatic input equalization compensates for attenuation on the incoming signal and automatically equalizes cables for the following distances: 3G-SDI 1920x1080@60Hz to 328 feet (100 meters). HD-SDI 1280x720@60Hz to 656 feet (200 meters). SD-SDI 525i@60Hz and 625i@50Hz to 984 feet (300 meters).
• Automatic output reclocking reshapes and restores timing of digital video signals at output, eliminating high frequency jitter.
• Supports HDTV resolutions to 1080p @60Hz.
• Auto-detects 3G-SDI, HD-SDI, or SD-SDI format.
• Supports SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M Level A, and ITU-R BT.656/BT.601 video interfaces used for broadcast-grade video.
• Passes embedded audio, ancillary ID and metadata information, and SD/HD/3G-SDI digital video signals
• Supports 48kHz audio.
• Plug-and-play functionality no software needed.
• Ideal for CCTV surveillance systems, TV broadcast studios, digital cinema, medical imaging facilities, or any AV application where signals need to be split from a camera or other device equipped with 3G/HD/SD-SDI outputs to four SDI-compliant displays or video processors.

Power

• Dimensions WxDxH (in):5.79x3.54x0.99 (147x90x25 mm)

Environmental

• Operating temperature: 32 to 104 F (0 to 40 C).
• Storage temperature: -4 to 158 F (-20 to 70 C).
• Operating and storage relative humidity: 20 to 90% non-condensing RH.

Regulatory Approvals

• CE, FCC, RoHS

Warranty Two years
