VT520-US AC Voltage Monitor US

Product Datasheet

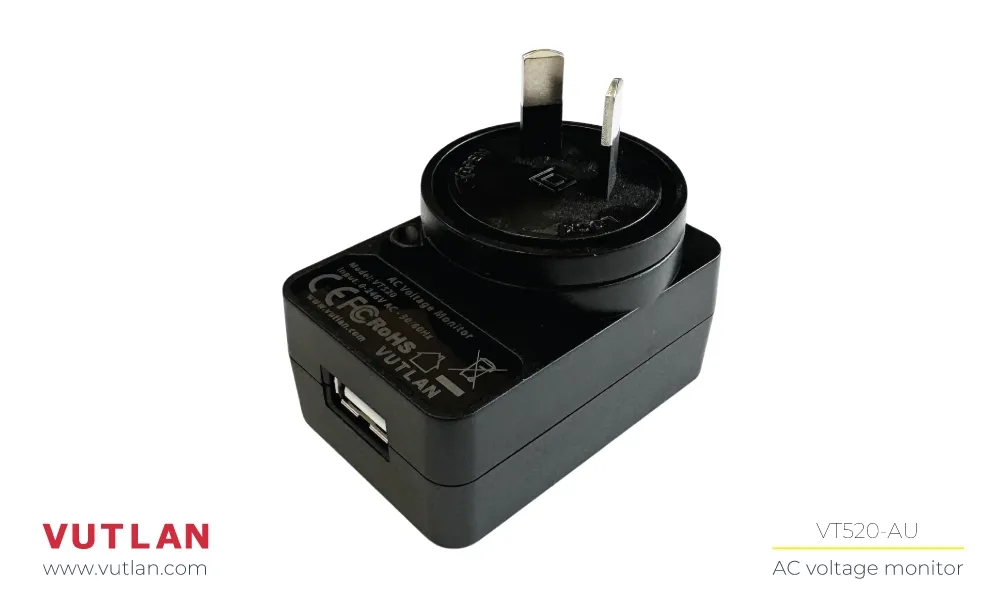

Ensure stable power conditions with the VT520 AC Voltage Monitor. Designed for real-time monitoring of AC voltage levels, it helps protect critical infrastructure by detecting fluctuations and power anomalies. Easily integrated with Vutlan™s monitoring systems for instant alerts and automatic actions.

The sensor measures AC voltage 0-246V. Interchangeable plug types for Europe, the US, China, Australia, and South Africa for power sockets or power strips with IEC C14 outlets.

Can be connected to any analog port (A1...A8) of the Vutlan monitoring unit. The sensor is plug-and-play.

Using the VT408/Sensor extension unit, the maximum number of sensors connected to a single Vutlan monitoring unit and its maximum length can be extended.

VT520-US: For USA, Canada, Mexico & Japan European plug type A (NEMA 1-15 U.S. 2 pin)

Specifications

• Type of sensor: Analog sensor
• Measured voltage: 0 .. 246 V AC
• Accuracy: 1 %
• Measures: AC voltage
• Daisy chain: No
• Cable length: RJ11/RJ12 6P4? to USB cable included, 1.8 meters.
• Power consumption: 60 mW
• Operating temperature: Optimal temperature range: -10° C to +80° C
• Operating humidity: 0 to 95 %
• Mounting possibilities: Insert in the socket. See order options for socket types.
• Max. distance from the unit: 100 m
• Outputs terminals: RJ-11 / 6P4C
• Manufactured in: Slovak Republic, E.U.
